Cerebus

The Cerebus Neural Signal Processor is a highly-configurable, easy to use, multichannel data acquisition system for animal neurophysiology experiments.

Features

Cerebus at a Glance

Closed-Loop Capabilities

Records Up to 512 Channels

High Sampling Rate

Gemini Hub

The Gemini hub is a compact 256 channel DAQ with onboard processing and the ability to synchronize with the Cerebus Neural Signal Processor and additional Gemini Hubs

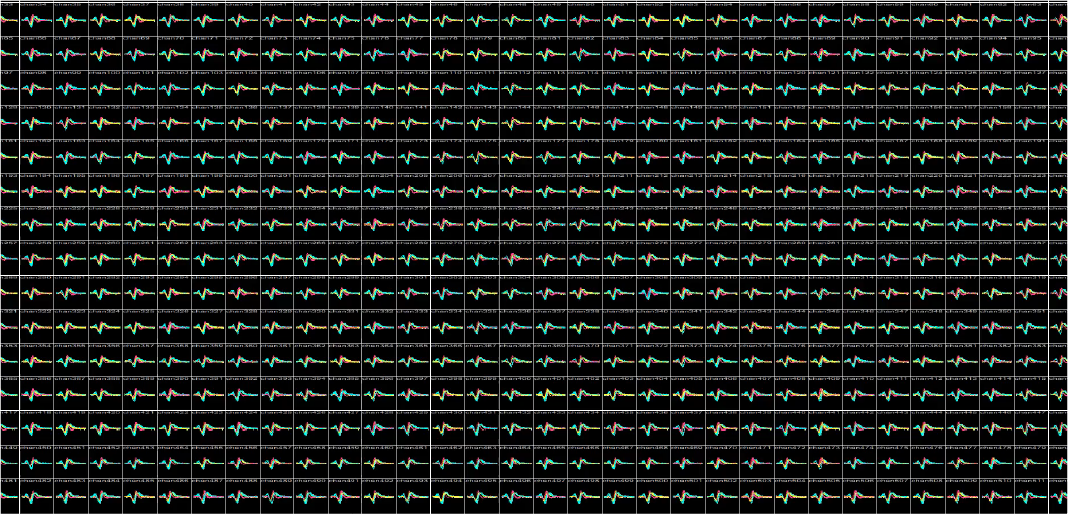

High Channel Count

Up to 256 channels per ethernet digital hub and up to 2x ethernet digital hubs into each NSP.

Our data acquisition platform now supports the EthoVision XT behavioral tracking system from Noldus!

EthoVision is a cutting-edge video tracking platform that provides a sophisticated yet easy to use video solution. It can now be seamlessly integrated with our Cerebus and CerePlex Direct systems to meet your experimental needs. To learn more about EthoVision and how it can benefit your research, please contact us.

Specs

Spec
Dimensions	17" x 12.5" x 3.5"
Weight	16 lbs
Sample Frequency	30 kS/s
Channel Count	Channel Options: 16, 32, 64, 96, 128, 258, 512
Input Connectors	4x ±5V BNC input digitized with 16 Bits sampled at 30 Ks/s
Digital Input	16 Bit TTL input sampled at 30Ks/s with strobe feature, 1x RS 232 Serial Input

Support & Downloads

Project	LB#	Rev.
Cerebus System IFU	LB-0028	20.00
Central Software Suite IFU	LB-0574	5.00
Cerebus NSP Firmware	RS-0115	7.7.0

Software

Project	LB#	Rev.
Data Loaders
Central (Cerebus) Software Suite	RS-0048	7.7.0

SDK

Project	LB#	Rev.
cbSDK-Examples, CBMEX, Mapping Examples, Sample Data
