The MagRes is a single-unit, analog recording, MRI-compatible, headstage that allows small animal and non-human primate researchers to directly correlate neural activity with hemodynamic changes detected on MRI.

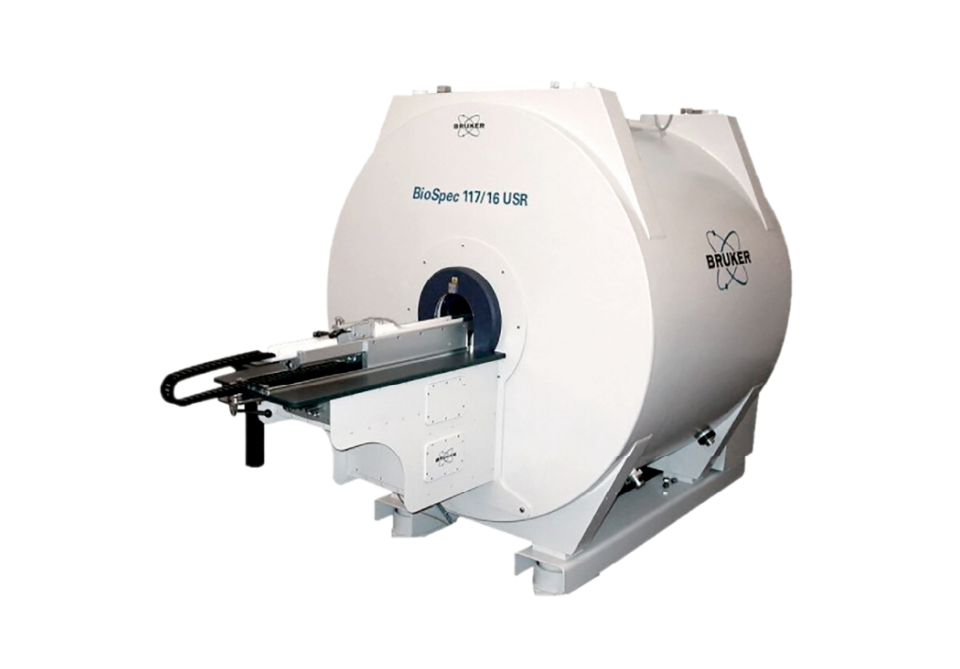

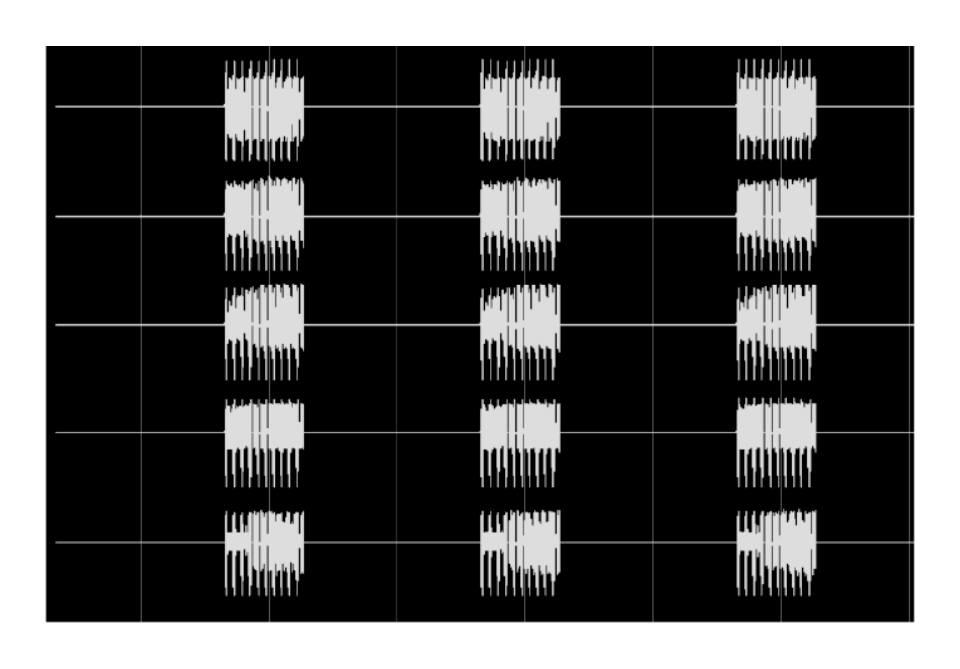

The MagRes Headstage has been successfully tested for heating, migration, and image artifact in the MRI environment up to 16.4T and can record single-unit spikes and wide band signals while in an MRI during scan without distorting image (no imaging artifact).
The MagRes has a small form factor allowing the animal to comfortably wear the analog headstage while in the MRI during operation.
The MagRes provides an isolated low-impedance output that guarantees signal integrity, minimizes noise pickup by cables, and ensures maximum common-mode noise rejection when using the Cereplex A.
| Spec | |
|---|---|
| Number of Channels | 16 - 32 |
| Dimensions | 19 mm x 8 mm x 2 mm - 10 M Cable Length |
| Input Impedance | 2.6 pF, 1300 MΩ @ 10 Hz, 13 MΩ @ 1 kHz |
| Auto Impedance Measurement Range | N/A |
| Maximum Input Range | +/- 8.192 mV with respect to reference |
| Output Connectors | QSE |
| Input Connectors | 32 Ch Omnetics, 36 Pin Omentics, 36 Position Dual Row Female Nano-Miniature (.025"/.64mm) Connector OR 16 ch Omnetics, 18 Pin Omnetics, 18 Position Dual Row Female Nano-Minature (.025"/.64mm) Connector |
| Project | LB# | Rev. |
|---|---|---|
| MagRes Headstage IFU | LB-0936 | 3.00 |
