NeuroSnap D

The NeuroSnap D Headstage is optimized for concurrent neurophysiology research during clinical monitoring in EMUs. The device achieves stable, low-noise single unit recordings by digitizing the signals on board. Its compact, lightweight, and robust design fits easily into headwraps, enhancing comfort without sacrificing data integrity in demanding clinical environments.

Features

The NeuroSnap D is a compact heastage that boasts greater signal quality, comfort, durability, and ease of use compared to previous models.

Onboard Digitization

An on-board ASIC chip digitizes and filters signals close to the electrode, dramatically reducing noise and enhancing signal clarity.

Lightweight and Compact

Designed for patient comfort, the Dixi Headstage weighs only 1oz and fits unobtrusively under headwraps for extended use in sub-chronic studies.

Seamless System Integration

Acquires and transmits microelectrode data to the NeuroPort Biopotential Signal Processing System, enabling streamlined online data analysis and closed-loop experiments.

Investigational Use

ISO-13485 and IEC 60601 Compliant, NeuroSnap is ready for clinical research in IRB/IDE approved protocols.

Supported Electrodes and Connectors

Each NeuroSnap D records from up to four DIXI Microdeep® Micro-Macro Depth Electrodes.

Supports single-unit recording

Compatible with two variants of the Microdeep® Micro-Macro Depth Electrodes : 6 macro-contacts / 3 tetrodes (12 micro-contacts) 9 macro-contacts / 2 tetrodes (8 micro-contacts)
- Micro contacts extend past tip of wire bundle
- 0.8 mm diameter

NeuroSnap pigtail connector number system up close

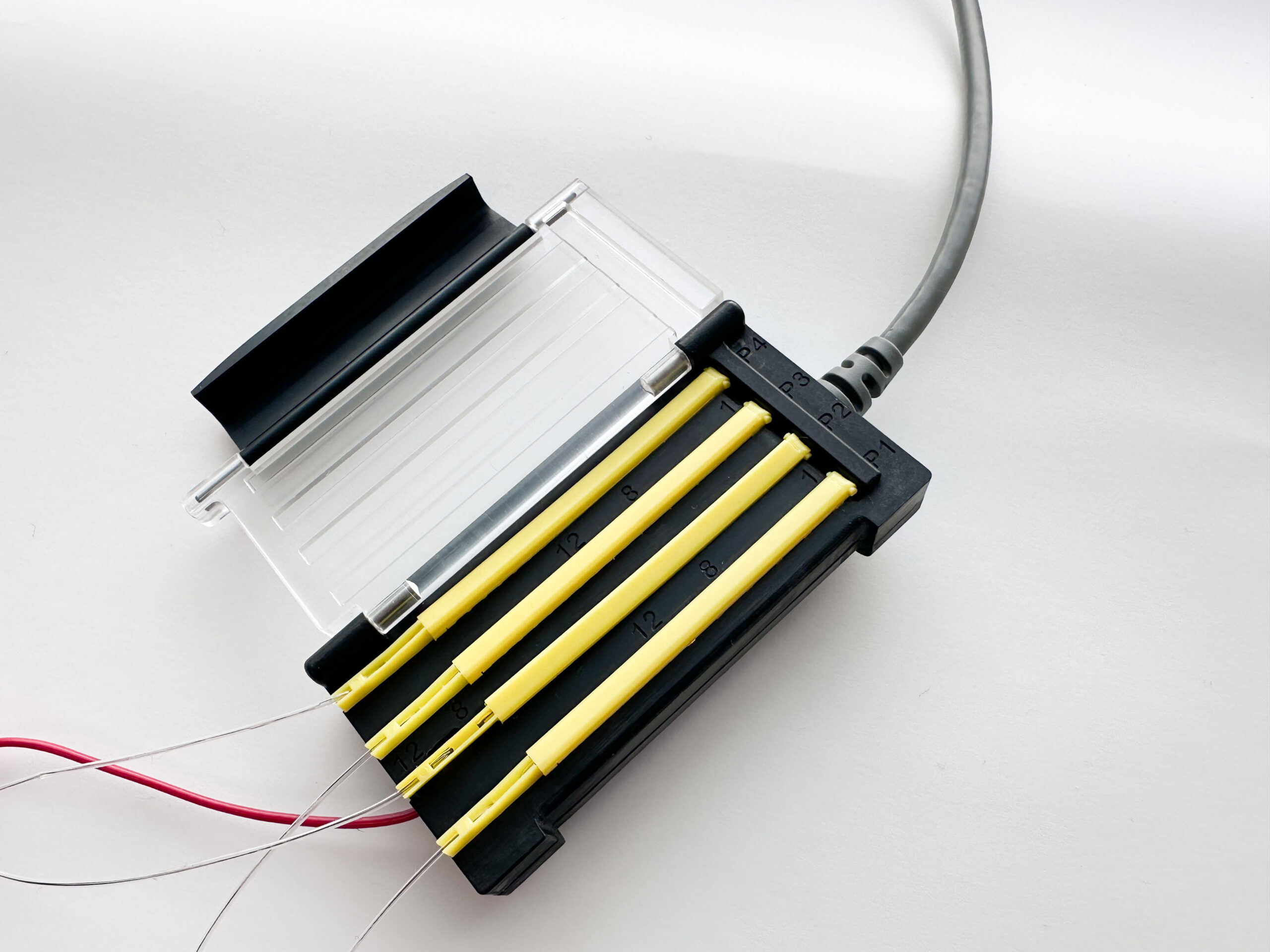

The NeuroSnap D - a black rectangular electronic box with green inserters. The case has a clear plastic lid that is open in the image.

A Lightweight and Durable Design

Engineered for sub-chronic and acute recording, our NeuroSnap headstages combine a lightweight profile with robust construction. Weighing just 1.9 oz (53.86g), 75% lighter than Cabrio 16-channel adapters, it fits unobtrusively under the patient’s headwrap and ensures maximum comfort during extended clinical use. Its compact design does not compromise on resilience however, ensuring reliable performance during severe seizures.

Digital Precision in Neural Signal Transmission

On-board signal digitization allows transmission of up to 48 channels of high resolution data over a single, thin cable. Cable length no longer affects signal quality.

Impedance Measurement

The NeuroSnap headstages measure micro-electrode impedances, covering a range 5kOhm – 1MOhm. This capability allows measurement and assessment of electrode quality and status over the course of the implant.

The NeuroSnap System

For seamless data management and extended research capabilities, the NeuroSnap D Headstage and NeuroSnap Bridge connect to the NeuroPort Biopotential Signal Processing System, bringing together high fidelity single unit data, macro-electrode data from diagnostic electrodes and powerful online, real time, closed loop control.

Specs

Spec
Model Number	13408-I
Number of Channels	8 micro-contact variant: 32 (recording), 4 (reference)
12 Micro-Contact Variant	48 (recording), 4 (reference)
Power Requirements	5 VDC, 150 mA maximum load
Resolution	16-bit, 250 nV per bit
Sampling Frequency	30,000 samples per second
Mode of Operation	Continuous
Input hardware filter (user selectable on the NeuroSnap Bridge):	0.3 Hz - 7.5 kHz (Normal mode) / 0.02 Hz - 10 kHz (Wide-Band Mode)
Input Filter Type	2nd Order Butterworth Bandpass
Input impedance	1300 MΩ @ 10 Hz, 13 MΩ @ 1 kHz
Auto impedance measurement range	5 kΩ – 1 MΩ
Maximum input range	± 8.192 mV with respect to reference
Ingress protection	Ordinary Equipment, not fluid resistant, IP20
Dimensions	2.88” x 1.42” x 0.70” (73 mm x 36 mm x 18 mm)
Weight (without data cables and HDMI connector)	1.48 oz (42 g)
Operating environment:	Temperature: 10 ˚C to 35 ˚C \| Relative Humidity: 5 to 85% (non-condensing)
Storage environment:	Temperature: -20 ˚C to 50 ˚C \| Relative Humidity: 5 to 95% (non-condensing) \| Altitude: < 3000 m

Support & Downloads

Project	LB#	Rev.
NeuroSnap D Investigational IFU	LB-1347	1.00
